Silica Woven Fabric and Textiles

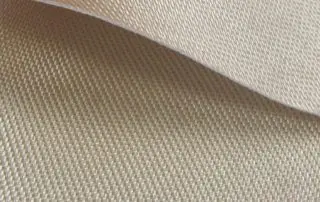

siltex 18

SILTEX® silica fabric and textiles are high-temperature resistant materials with a continuous operating temperature of 1800° F • 982°C. These fabrics from Mid-Mountain can be used in a range of configurations, including silica mat and silica fabrics.

Widely used for equipment and personnel protection in industries such as Welding, Shipbuilding, Metals Processing, Refineries, Foundries, Power Generation, and Petrochemical, SILTEX® Woven Fabrics and Textiles can be applied to applications where thermal insulation is essential to the reduction of maintenance and energy costs.

Comprised of high purity, high strength 96% amorphous silica fibers, SILTEX® Silica Fabrics and Textiles are optimal in applications where E-glass fabrics would typically fail.



Silica Fabric Applications
Welding Blankets, Curtains, and Pads
Diesel Engine Exhaust Covers
Fire-resistant doors
Furnace Insulation
Turbine Insulation
Thermocouple Insulation
Furnace pads and separators
Silica Fabric Features
Low Thermal Conductivity
Chemical Stability and Oxidation Resistance
Maintains Flexibility and Strength during use
Resists Molten Metals
High Dielectric Strength
Low Halogen Content
Low Smoke Emission
StyleWeaveWeight (oz/sy)Thickness (in)Width (in)Technical Data SheetSafety Data Sheet
18-UH8 Harness Satin18.02736
18-UH-AR8 Harness Satin18.02636
21-AL8 Harness Satin21.02626
36-UH12 Harness Satin36.06736
36-UH-AR12 Harness Satin36.06836
46-UHDouble Plain Weave460.1240
70-UHDouble Plain Weave700.15540

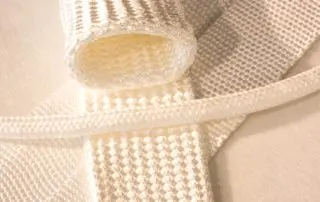

ProductTypeWidth/DiameterThickness Technical Data SheetSafety Data Sheet
TapeWoven
Knit
1" to 6"
1/2" to 12"
.015" to .100"
.050" to .200"
SleevingBraided
1/4" to 4-1/2"
.031" to .125"
RopeBraided1/8" to 1"
MaterialOperating TemperatureTensile Strength (lbs.)Tex (g/km)Yield (ly/lb)Technical Data SheetSafety Data Sheet
98% Amorphous Silica1800°F • 982°C3.81503300

SILTEX® 36-UH Woven Silica Fabric is an FM Approved product for use in Welding Curtains.
