Die-cutting is the sophisticated process of machining flexible materials for industrial applications. It involves feeding a web of material through a shearing chamber, where cutting components will either perforate shapes into the fabric or cut the material down to size. It is regularly applied in the thermal insulation sector to form sealants such as die-cut gaskets.

A die-cut gasket is a heat-resistant mechanical seal that is compressed between two components to fill voids, reduce leakage, and prevent abrasion during critical industrial processes. They are typically formed from heat-resistant textiles that may be coated with polymer-based solutions to enhance their thermal and mechanical properties. This complex mechanical architecture is desirable over stiffer materials as it offers a degree of flexibility, allowing the die-cut gasket to deform upon application and provide improved sealing properties – particularly where contact between components may be irregular.

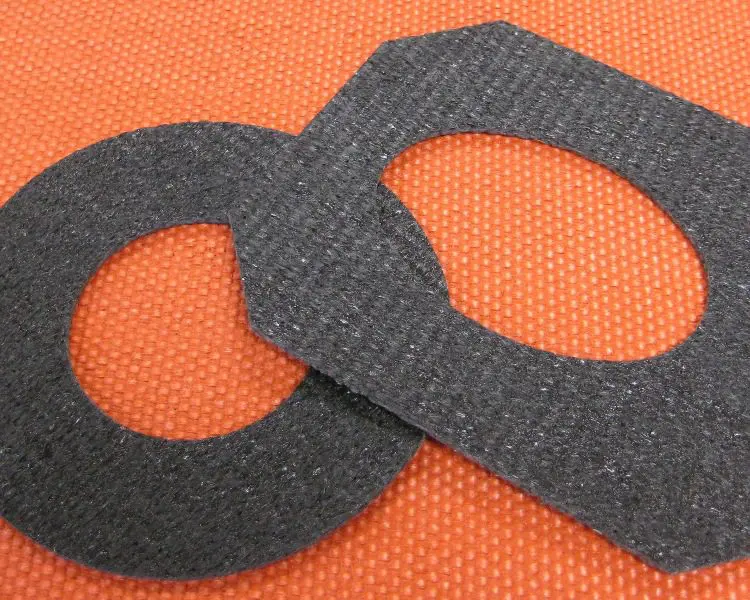

siphon sm_8044-2

Ductility and heat-resistance are the two most fundamentally important characteristics for manufacturing die-cut gaskets, and the temperature requirements vary widely depending upon the application specifications of the component.

THERMOPAK® Die-Cut Gasket

Mid-Mountain Materials THERMOPAK® Die-Cut Gaskets are our primary range of die-cut thermal seals for refractory applications. They can be fabricated from an array of high-functionality materials, including coated fabrics, fiberglass papers, and silica mats, which provide outstanding resistance to abrasion and heat-related corrosion. Both coated and untreated textiles can be pressed into custom die-cut gaskets of varying dimensions.

High-performance ARMATEX® Coated Fabrics are regularly fabricated into die-cut gaskets, with a multiplicity of mechanical benefits and customizable capacities. Our baseline silicone-coated fiberglass textile features a continuous use limit of 232°C (450°F), with a refractory fabric option of silicone-coated silica offering temperature resistances of up to 982°C (1800°F).

Die-cut gaskets must be manufactured to entirely bespoke parameters to ensure that components perform under unique conditions, providing resistance to potential shearing forces, thermal distortion, and chemical corrosion. Mid-Mountain Materials, Inc. is committed to vertical integration, to ensure that customers receive die-cut gaskets that exceed their expectations and operate with minimal maintenance for extended service lives.

Die-Cut Gaskets from Mid-Mountain

Mid-Mountain offers expertise and quality when it comes to formulating thermal insulation barriers for any sector. We can fabricate die-cut gaskets from established industry materials and our own proprietary range of thermally-insulating coated fabrics. Our products are guaranteed to reduce the risk of leaks and mechanical abrasion throughout routine operating conditions, and to extend the uptime of facility-critical components. We produce custom die-cut gaskets in the following fabrics to multiple dimensions:

  • ARMATEX®;
  • Fiberglass;
  • Silica;
  • Calcium-Silicate;
  • Calcium Magnesium Silicate;
  • Neoprene;
  • Plastics;
  • Rubbers.

If you would like any more information about our die-cut gaskets, please do not hesitate to contact us.
